ADG506ATQ
Manufacturer:
Analog Devices
Mfr.Part #:
ADG506ATQ
Datasheet:
Description:

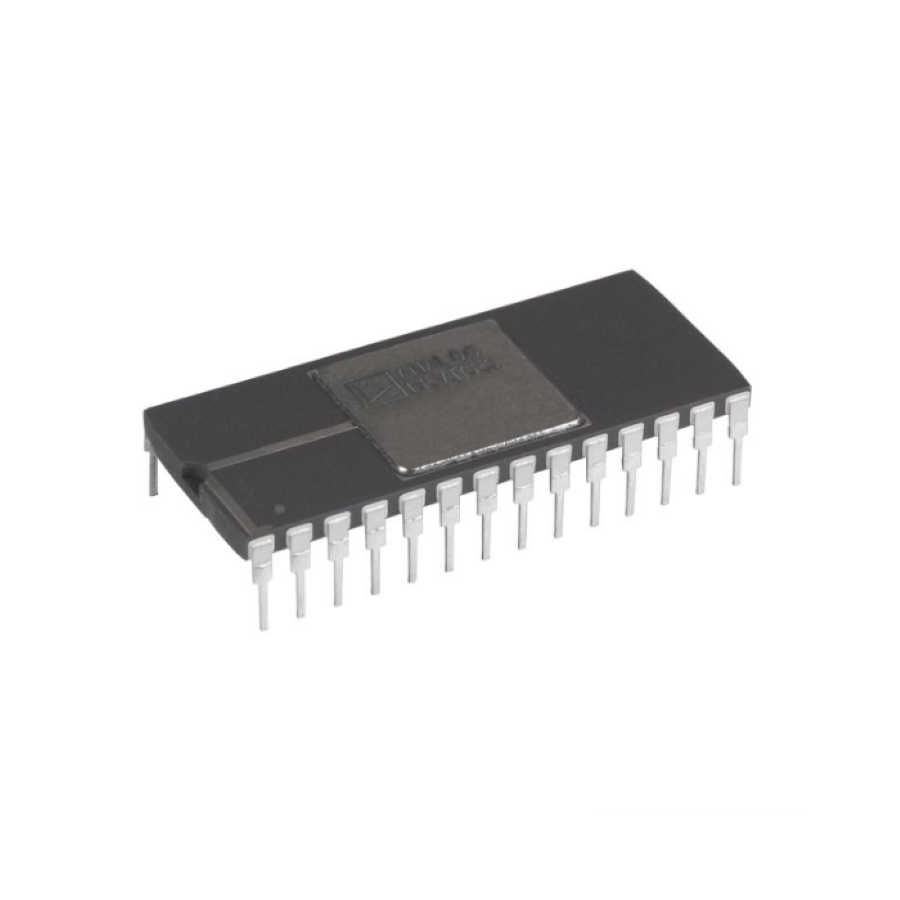

Multiplexer Switch ICs CDIP-28 Through Hole Number of Channels:16 600 Ω 400 ns 400 ns
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 28 |
| Resistance | 300 Ω |
| Packaging | Tube |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | Unknown |
| Interface | Parallel |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Power Dissipation | 28 mW |
| Max Supply Voltage | 16.5 V |
| Min Supply Voltage | 10.8 V |
| Power Dissipation | 10 mW |
| Number of Channels | 16 |
| Number of Bits | |
| Turn-On Delay Time | 400 ns |
| Turn-Off Delay Time | 400 ns |
| Operating Supply Current | 600 µA |
| Propagation Delay | 300 ns |
| High Level Output Current | |
| Low Level Output Current | |
| Number of Inputs | 16 |
| Number of Outputs | 1 |
| Max Dual Supply Voltage | -16.5 V, 16.5 V |
| Min Dual Supply Voltage | -10.8 V, 10.8 V |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| On Resistance (RON) | 600 Ω |
| Logic Family | |
| Configuration | 1 x 16:1 |
